JavaScript Data GridUser Created Charts


User created charts are designed to provide an out-of-the box charting experience, similar to that found in spreadsheet applications such as Excel, but fully integrated inside your applications.

Users can select a range of cells in the grid and create a chart from the context menu, as shown below:

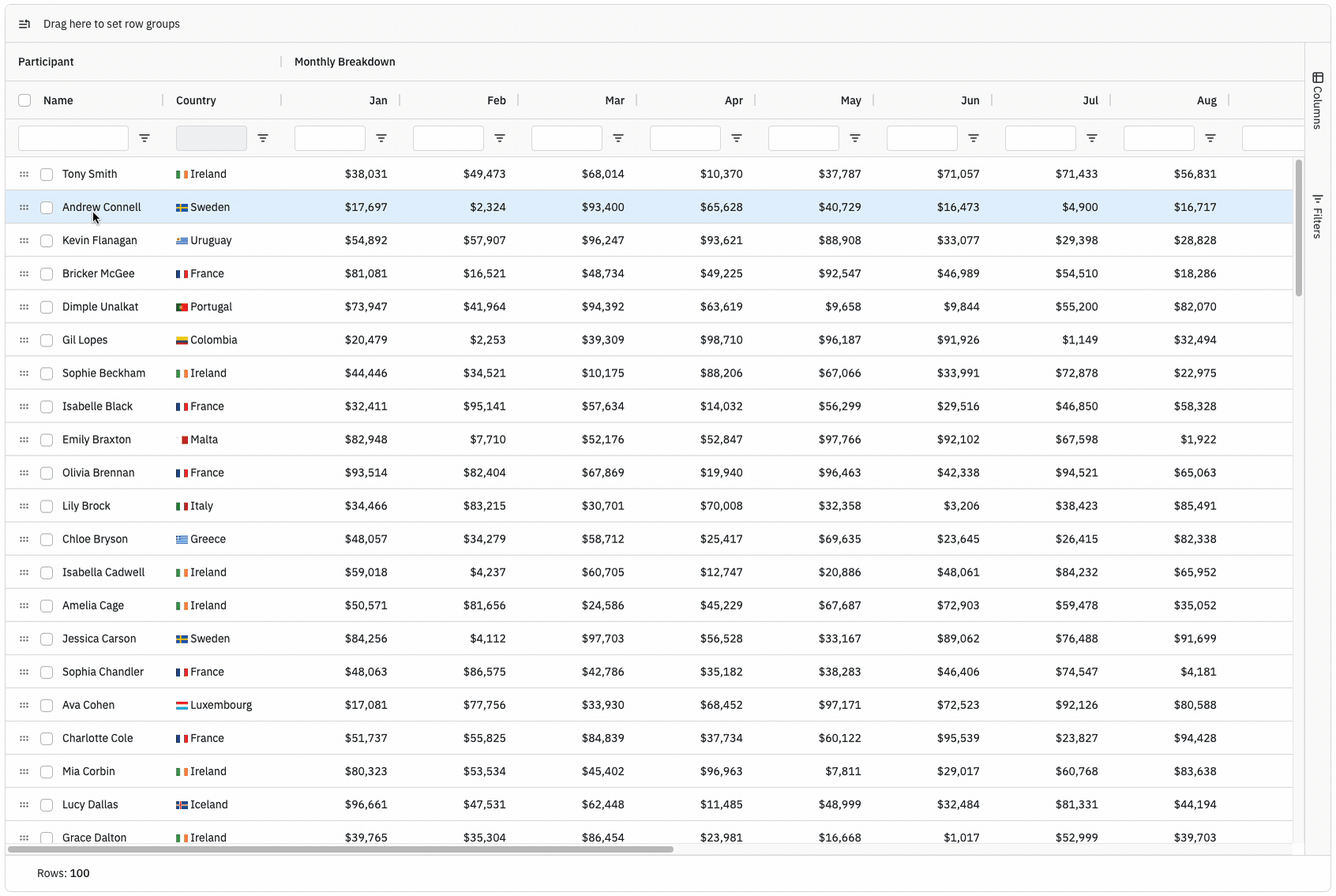

Chart Showcase

Notice that Chart Ranges appear in the grid after a chart is created. These provide useful visual feedback for users by highlighting the charted category and series data in the grid.

Try it out on our demo page by doing the following:

  • Select a Cell Range of numeric values in the grid by dragging the mouse over a range of cells.
  • Bring up the Context Menu and select the desired chart type from the 'Chart Range' sub menu.

Note that developers can also programmatically create range charts, see Application Created Charts.

Enabling User Created Charts

All that is required for users to create charts, from the data already contained in the grid, is to enable the following grid option:

const gridOptions = {
    enableCharts: true,

    // other grid options ...

To allow users to create charts from a Range Selection and / or display the Chart Ranges in the grid, enableRangeSelection should also be enabled as follows:

const gridOptions = {
    enableCharts: true,
    enableRangeSelection: true,

    // other grid options ...

User Created Charts

The video above highlights a number of charting features. For more details on each feature follow the links provided below:

Chart Ranges: When a chart is created, corresponding chart ranges appear in the grid and can be adjusted via the chart range handle.

Categories and Series: Columns can be configured as either categories or series for charting. If not configured then the grid will infer whether a column contains category or series data.

Range Handle

Chart Menu: The Chart Menu can be opened by a button located in the top-right corner of the chart. The Chart Menu allows a user to:

  • Edit the chart via the Chart Tool Panels
  • Change advanced settings such as interactivity
  • Link/unlink the chart to the grid
  • Download the chart
Open Chart Menu

Chart Tool Panels: The Chart Tool Panels can be opened via the Edit Chart option in the Chart Menu. The Chart Tool Panels allow a user to:

  • Change the chart type
  • Change the theme
  • Change which columns are used as categories and series
  • Format different aspects of the chart
Open Chart Tool Panel

By default, user created charts are displayed inside the grid's own popup windows. The windows can be moved (by mouse dragging a window's title bar) and resized (by mouse dragging a window's borders).

It is also possible to display user created charts in a location or application dialog. For more details see the section on providing a chart container.

If using the grid's own popup window, you will probably want to use the grid option popupParent so that the popup windows are not constrained to the bounds of the grid. Typically, users set popupParent=document.body to achieve this.

Next Up

Continue to the next section to learn about the Range Chart.
